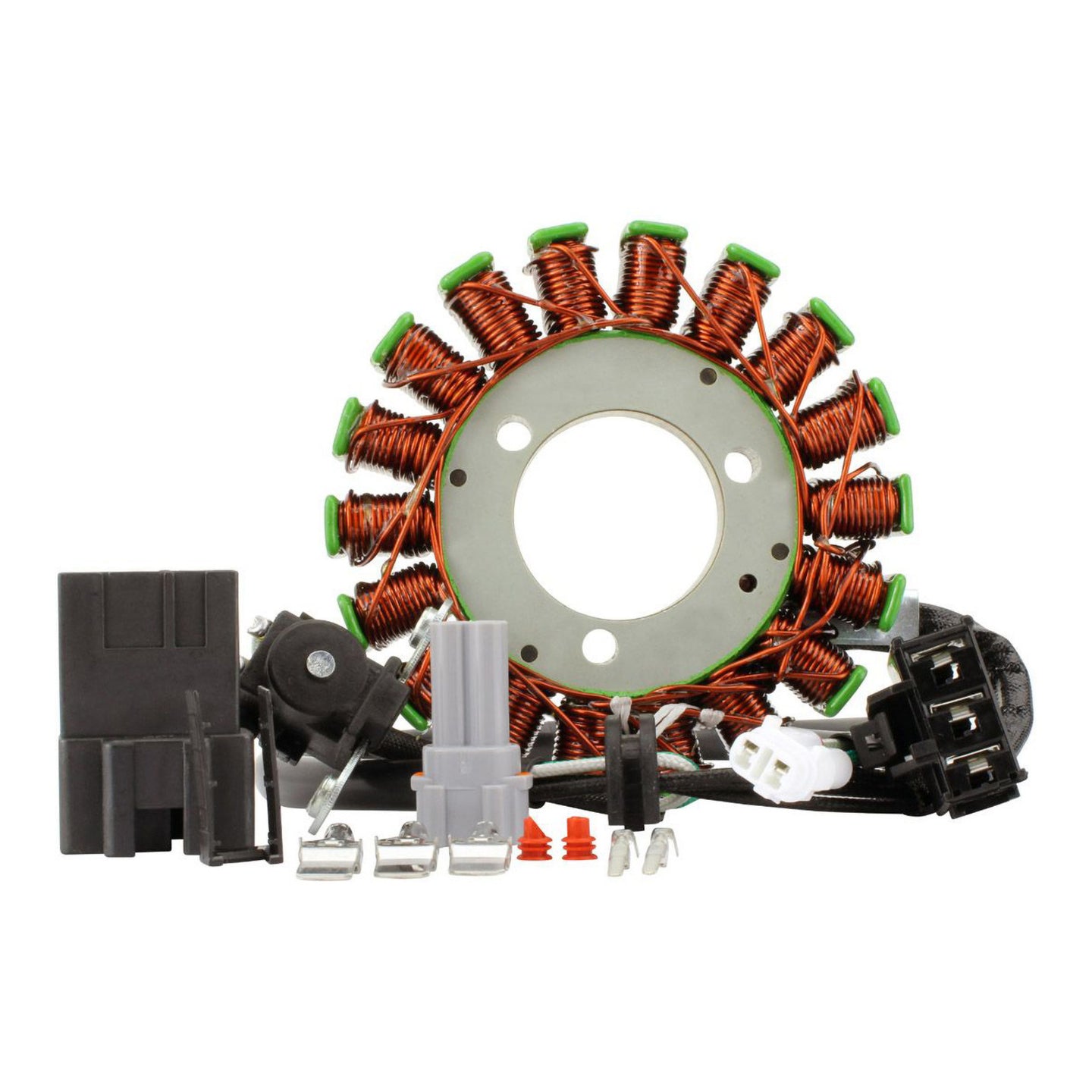

Brand new aftermarket generator stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
- Pick-up pulsar coil included
- Connector included
- Rubber grommet included
- All products shipped are tested
Dimensions:
- Interior diameter: 38 mm
- Exterior diameter: 107 mm
- Thickness: 16 mm
- Length of wires stator to grommet: 95 mm
- Length of wires grommet to plug: 380 mm
- Length of pickup coil's wire to grommet: 75 mm
Other specifications:
- Number of wires: 5
- Number of plugs: 2
- Number of holes: 3
- Number of poles: 18
Wire to wire resistance:
- Alternator : Black to Black = 0.6 ohms +-20%
- Pickup: White to Green/White = 232 ohms +-20%
