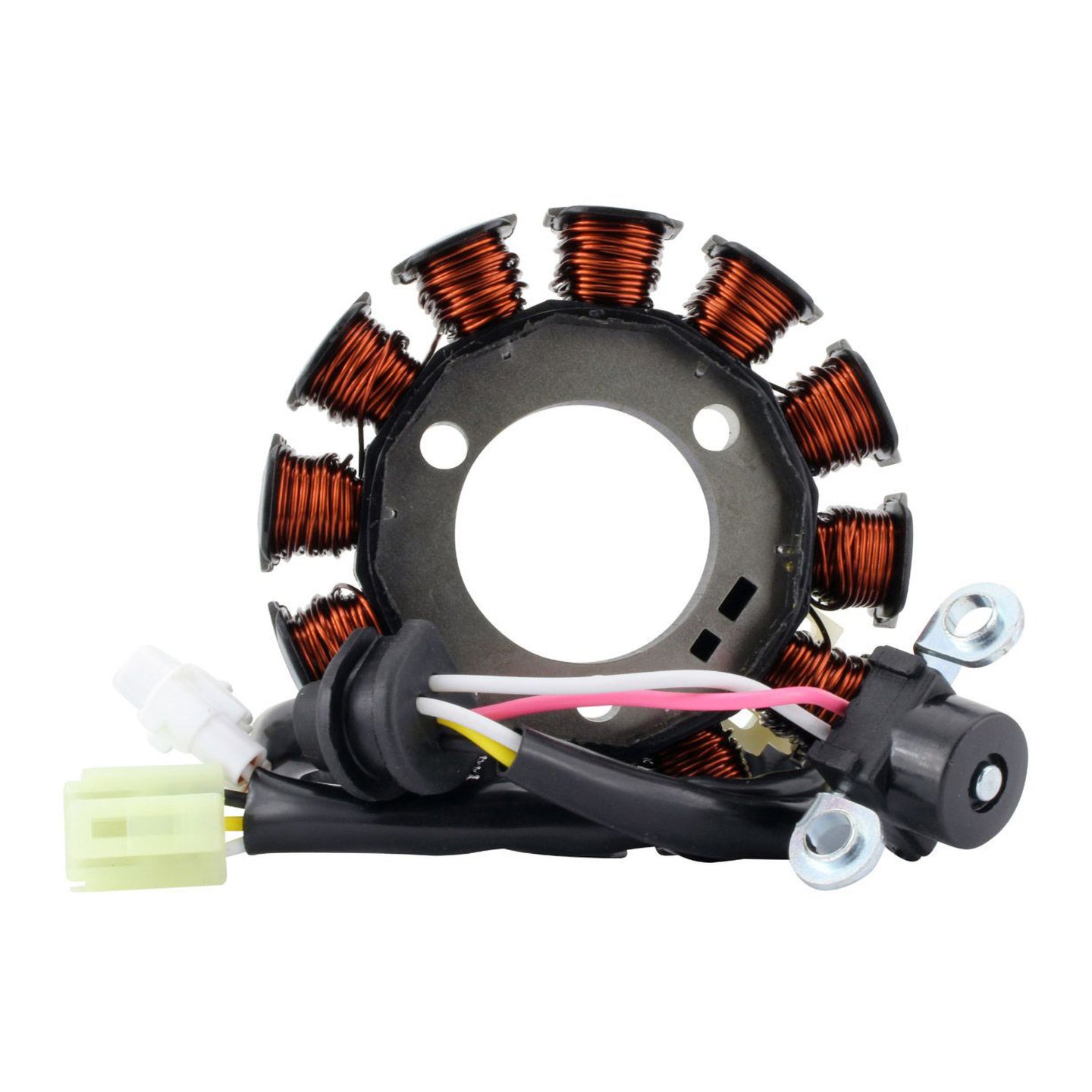

Direct replacement to your original unit.
- Plug-and-play, direct fit, easy installation
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- Connectors included
- Rubber grommet included
- All products shipped are tested
Dimensions:
- Interior diameter: 37 mm
- Exterior diameter: 92 mm
- Thickness: 12 mm
- Length of wires stator to grommet: 90 mm
- Length of wires grommet to plug: 280 mm
- Length of pickup coil's wire to grommet: 55 mm
Other specifications:
- Number of wires: 5
- Number of plugs: 2
- Number of pins: 5
- Number of poles: 12
Wire to wire resistance:
- All 1p winding: Black to White = 0.9 ohms +-20%
- Alternator #1: Yellow to Black = 0.6 ohms +-20%
- Alternator #2: Yellow to White = 0.8 ohms +-20%
- Pickup: Pink to White = 280 ohms +-20%
