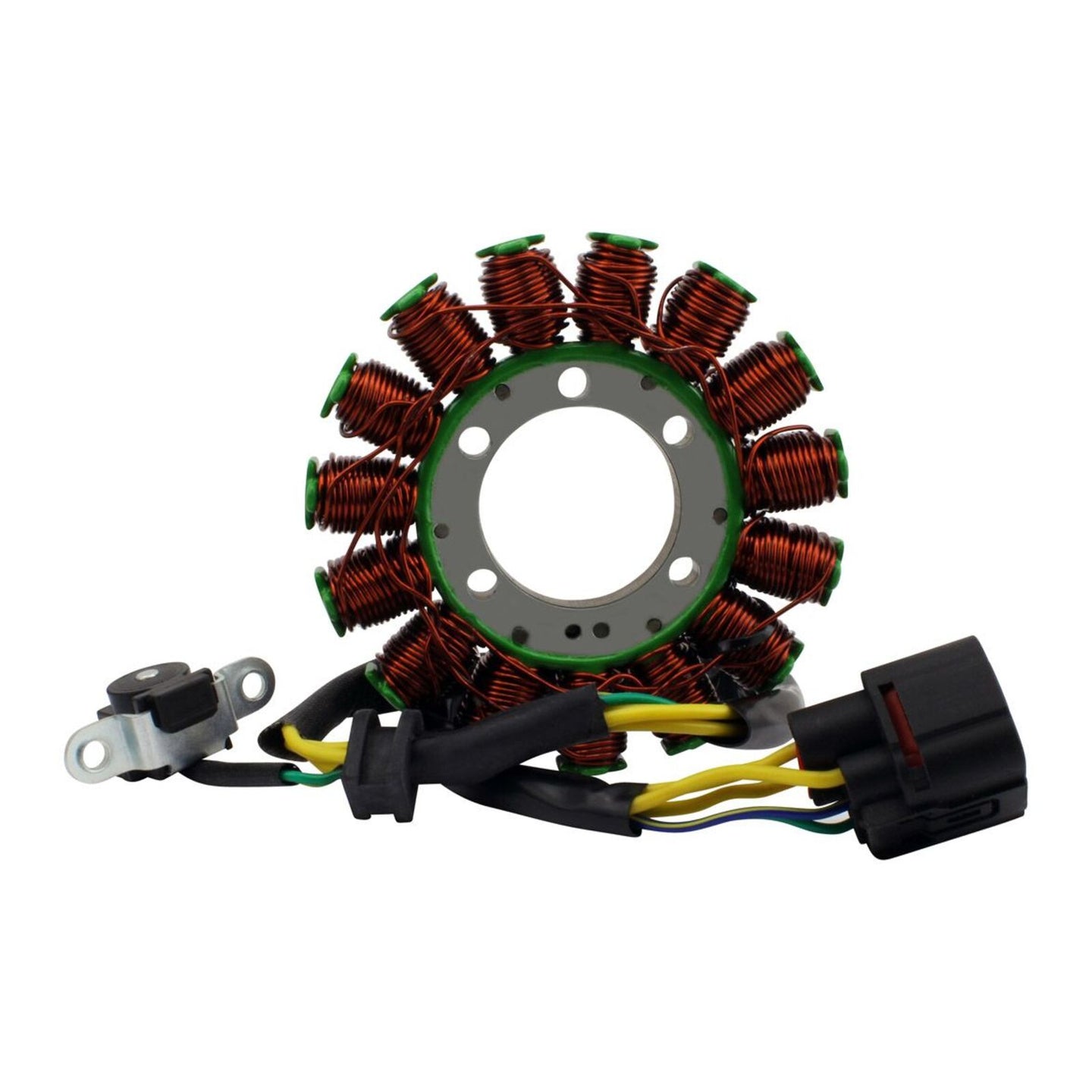

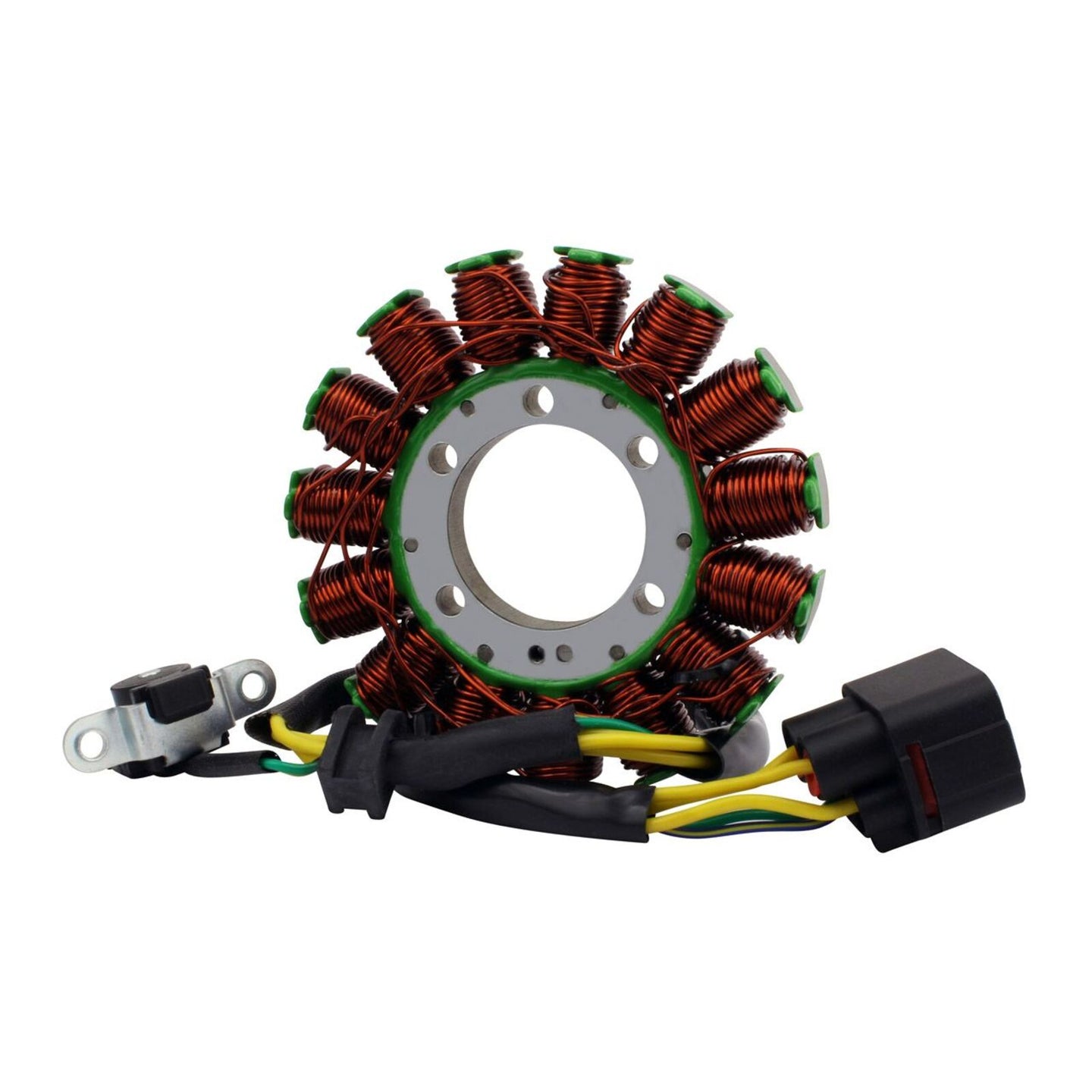

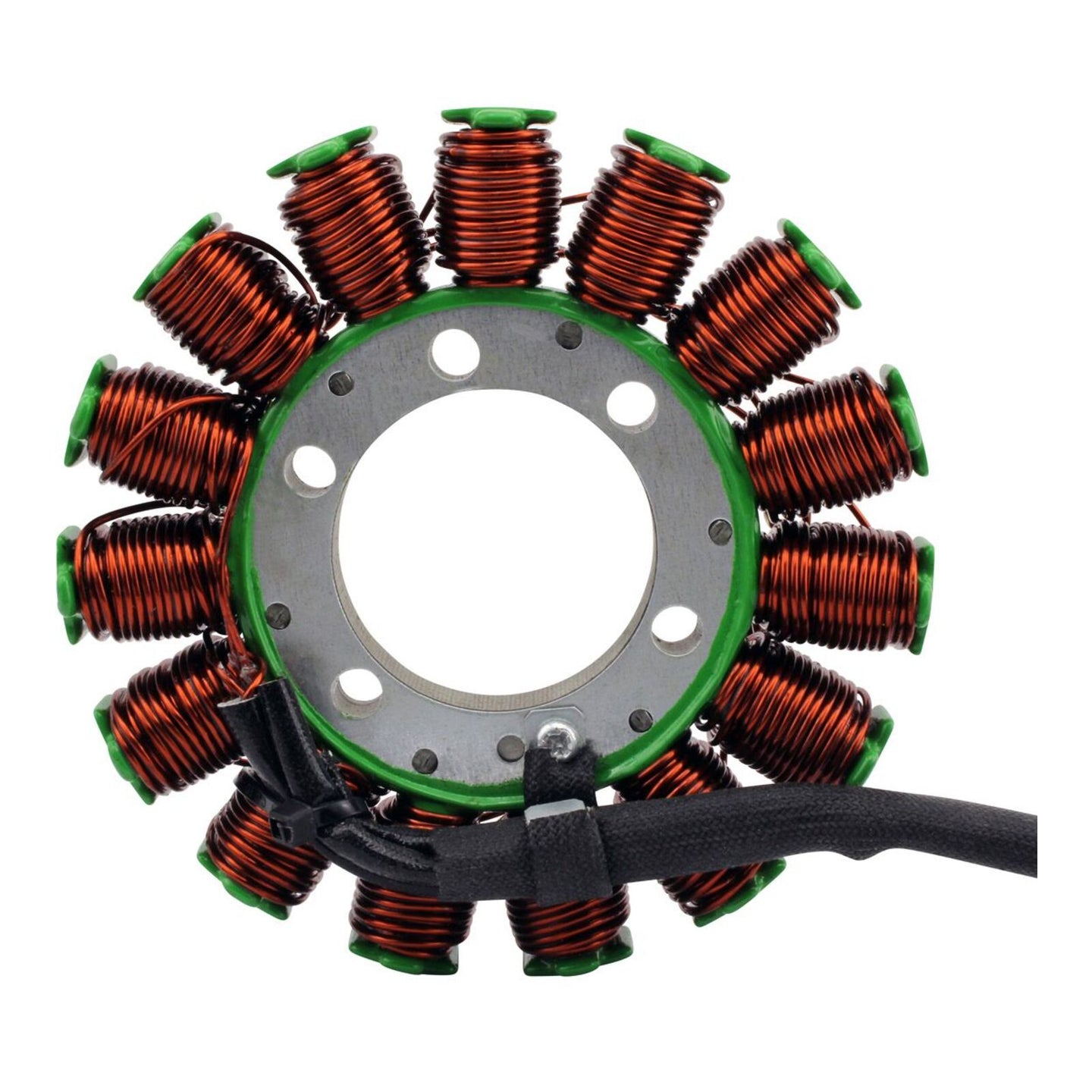

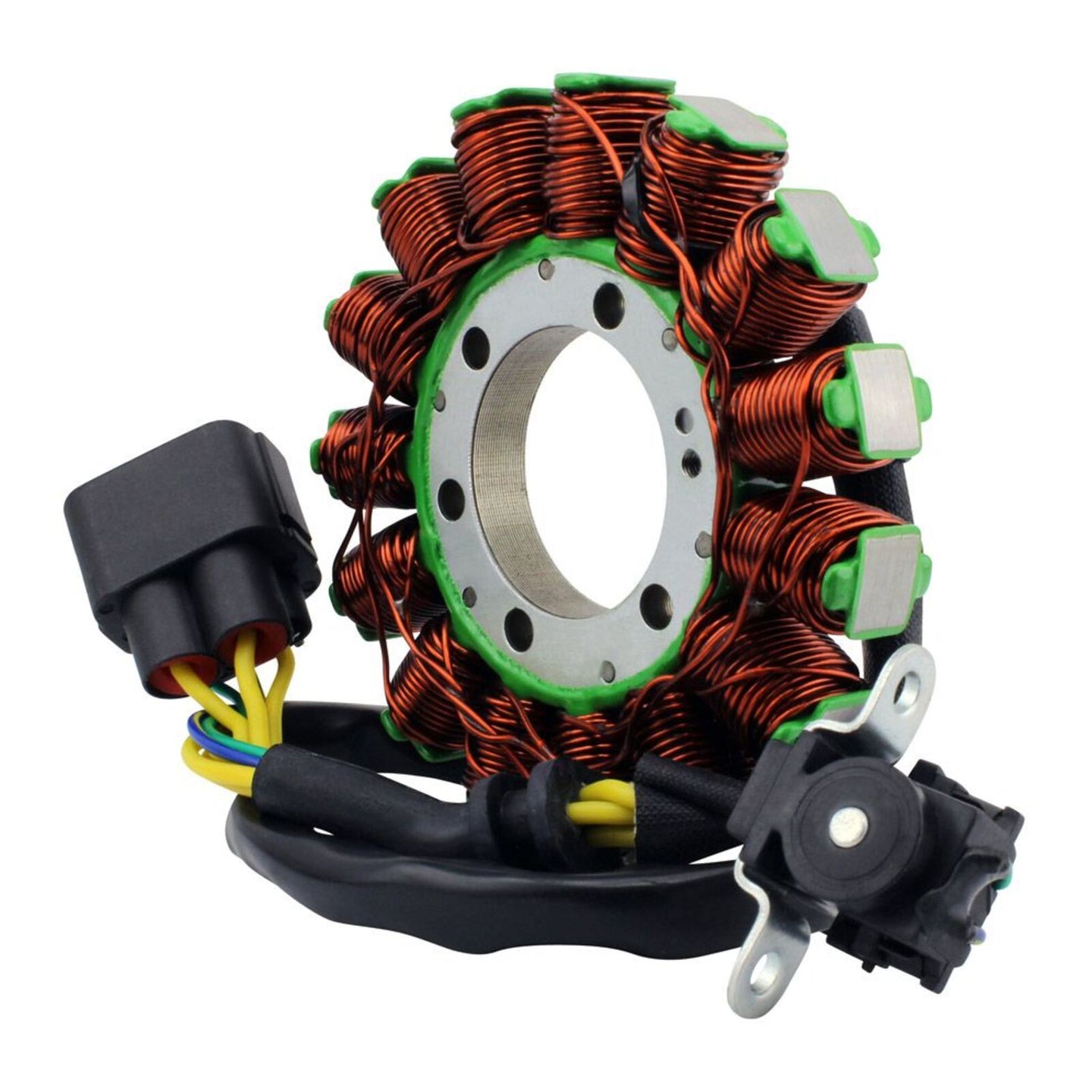

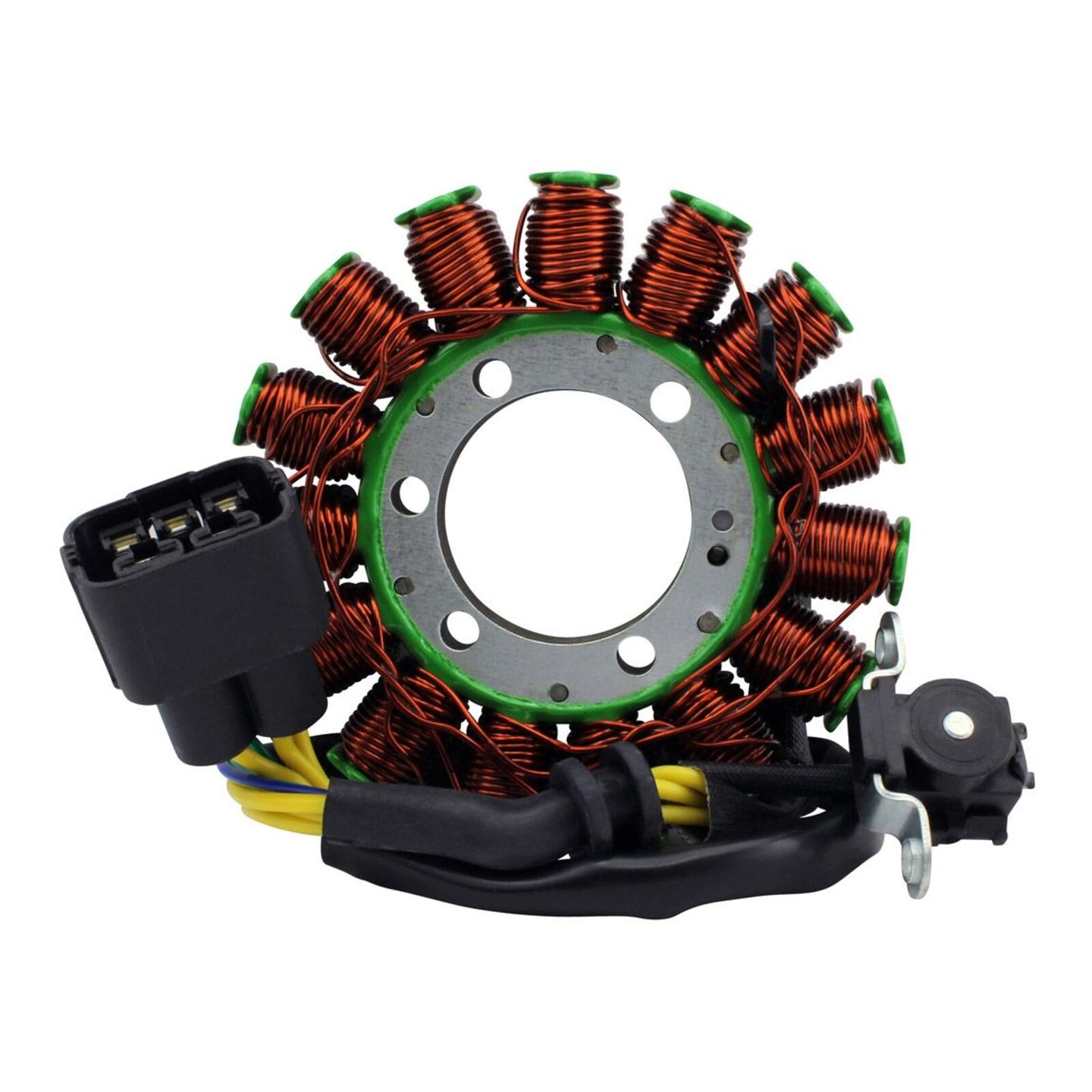

Direct replacement to your original unit.
Features:
- Plug-and-play, direct fit, easy installation.
- Highest grade of lamination materials.

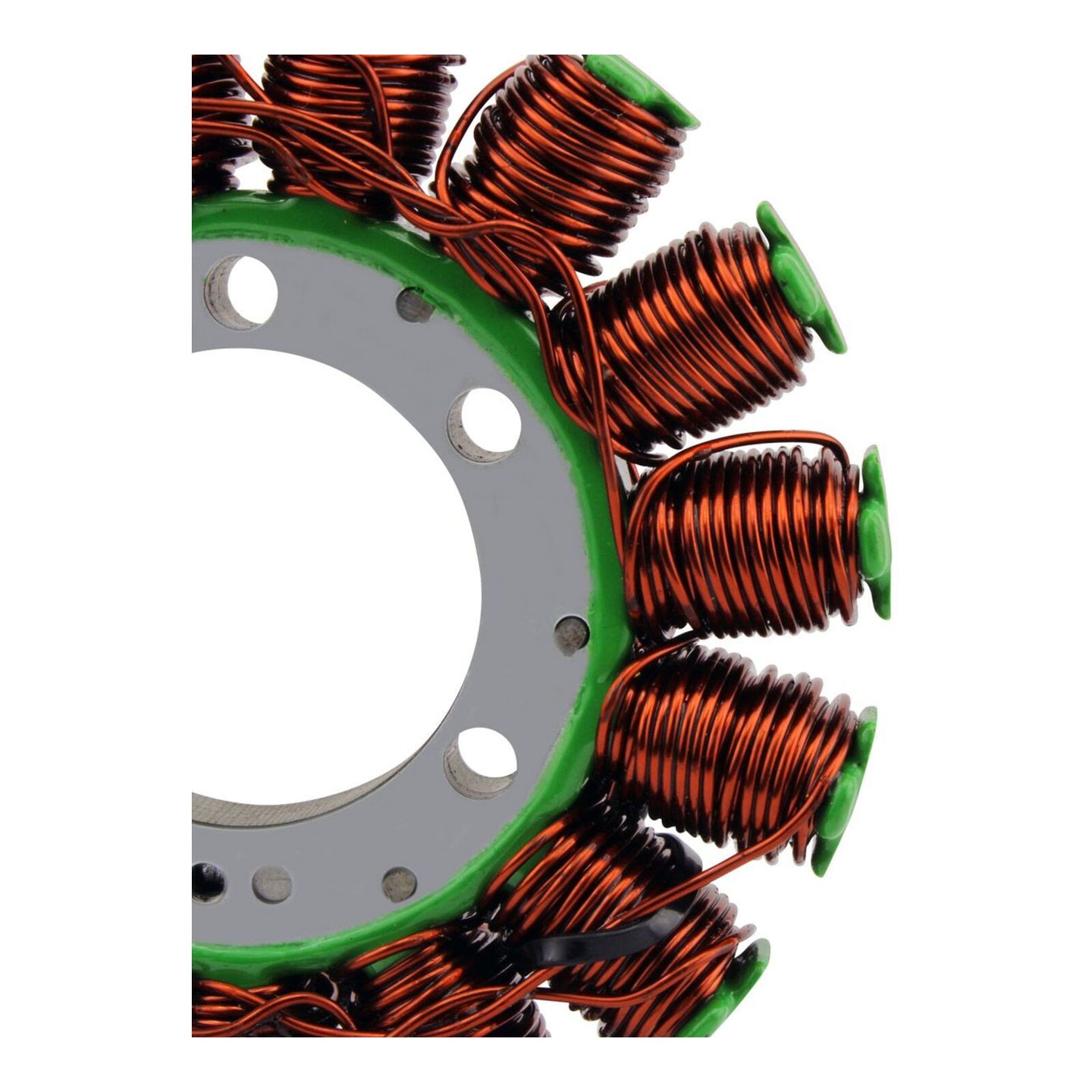

- Highest grade of copper winding, resistant to 200 degrees Celsius.

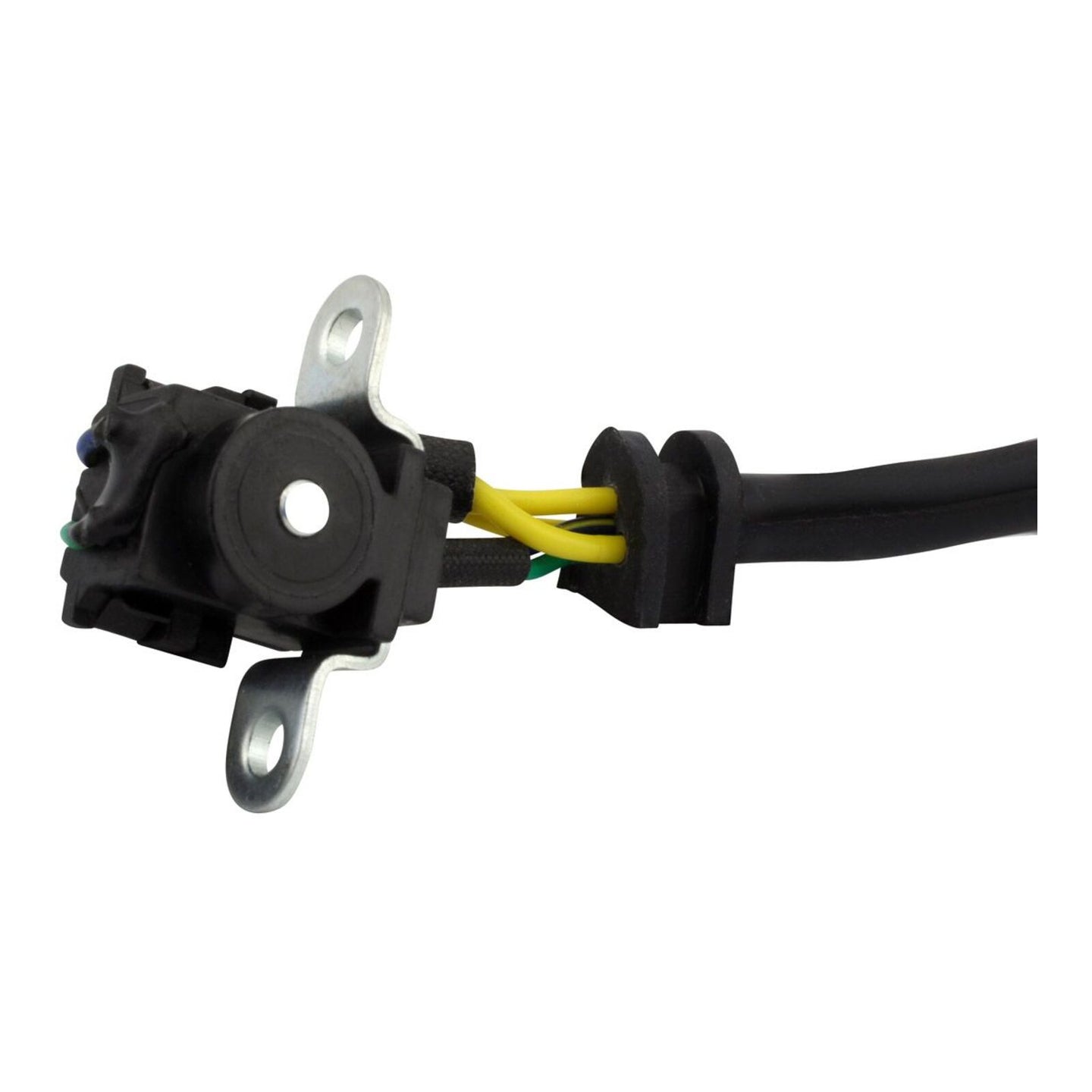

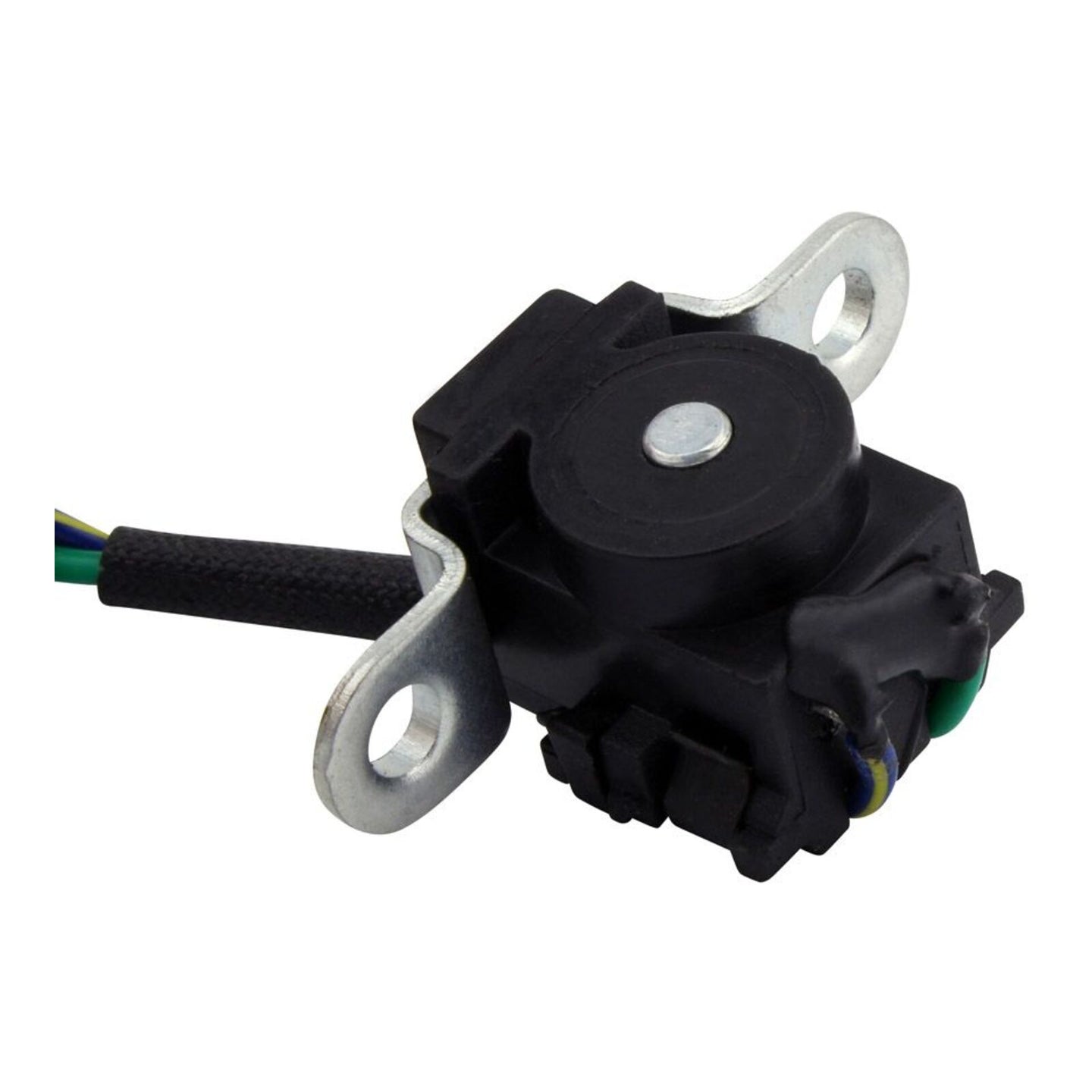

- Pickup pulsar coil included.

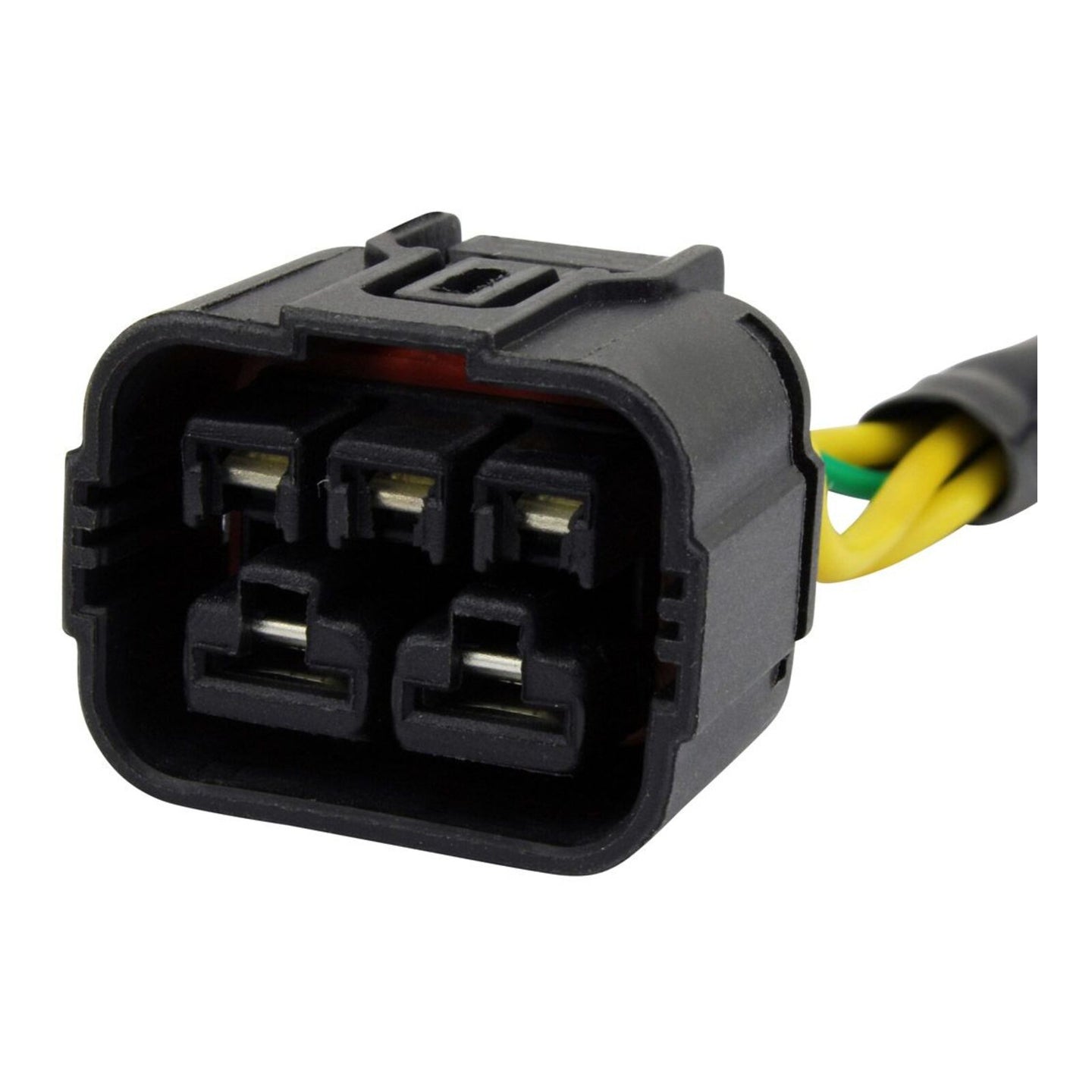

- Connectors included.

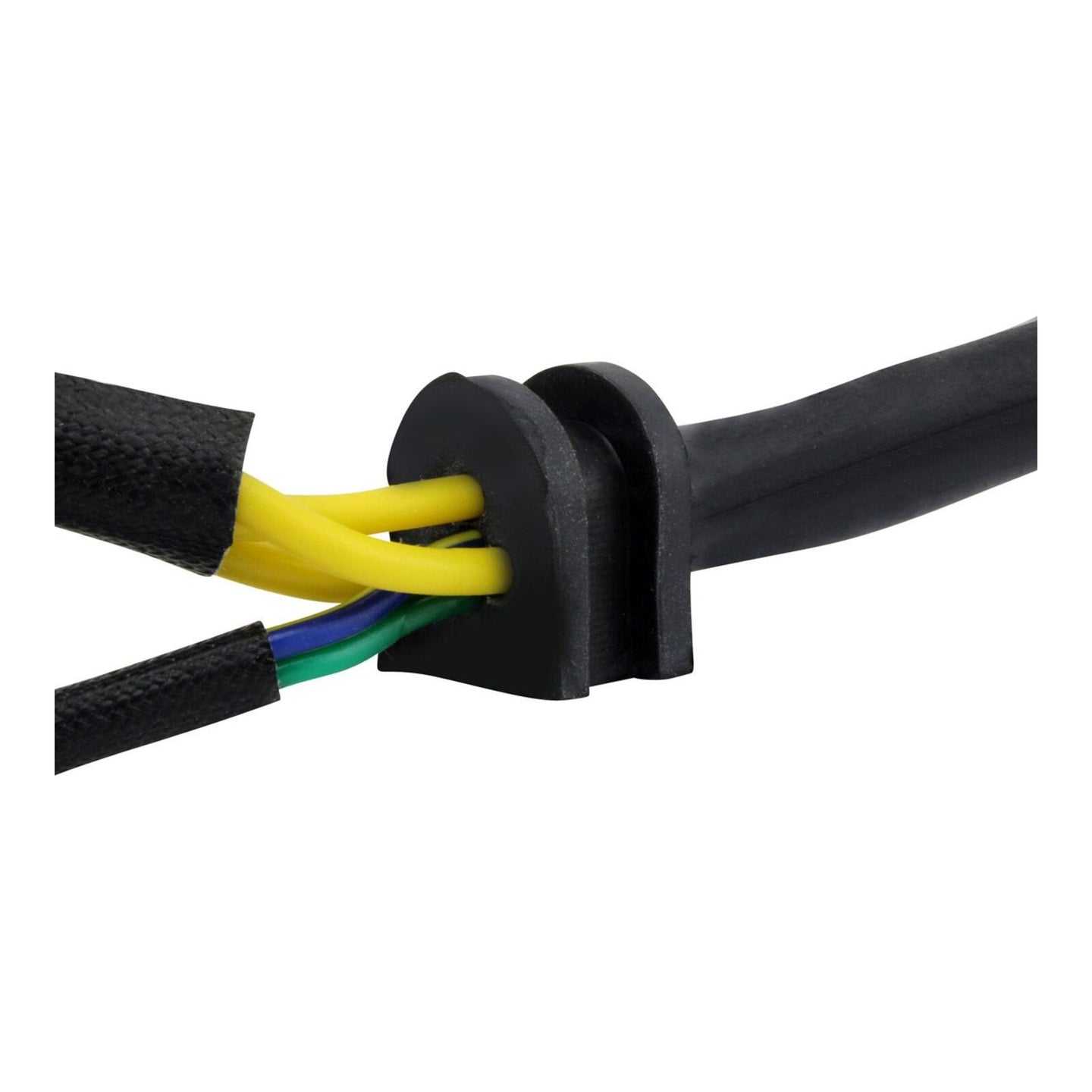

- Rubber grommet included.
- All products shipped are tested.
Dimensions:
- Interio r Diameter: 42 mm
- Exterior Diameter: 115 mm

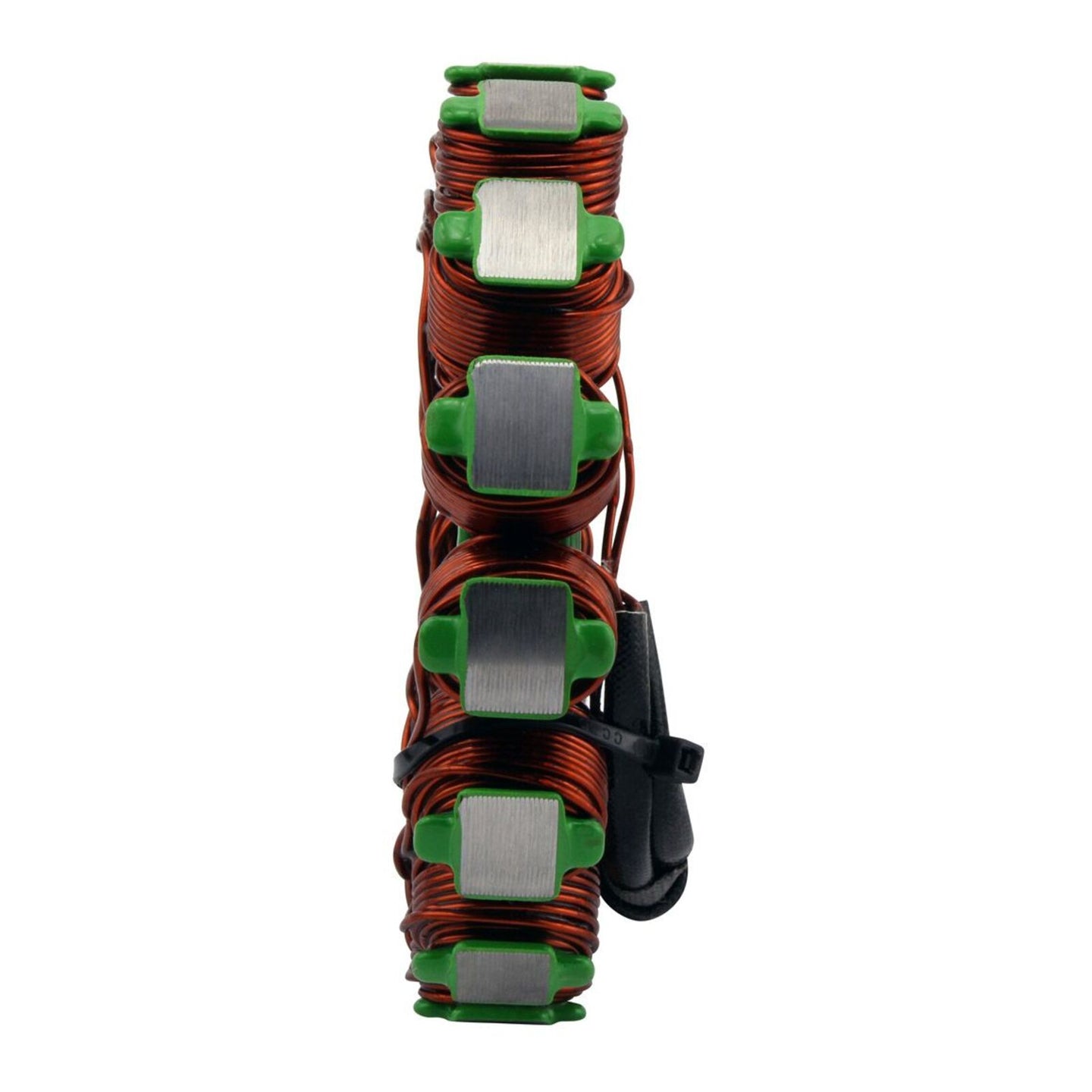

- Thickness: 10 mm
- Length of Wires (Stator to Grommet): 90 mm
- Length of Wires (Grommet to Plug): 40 mm
- Length of Pickup Coil's Wire to Grommet: 320 mm
Other Specifications:
- Number of Wires: 5
- Number of Plugs: 1
- Number of Pins: 5

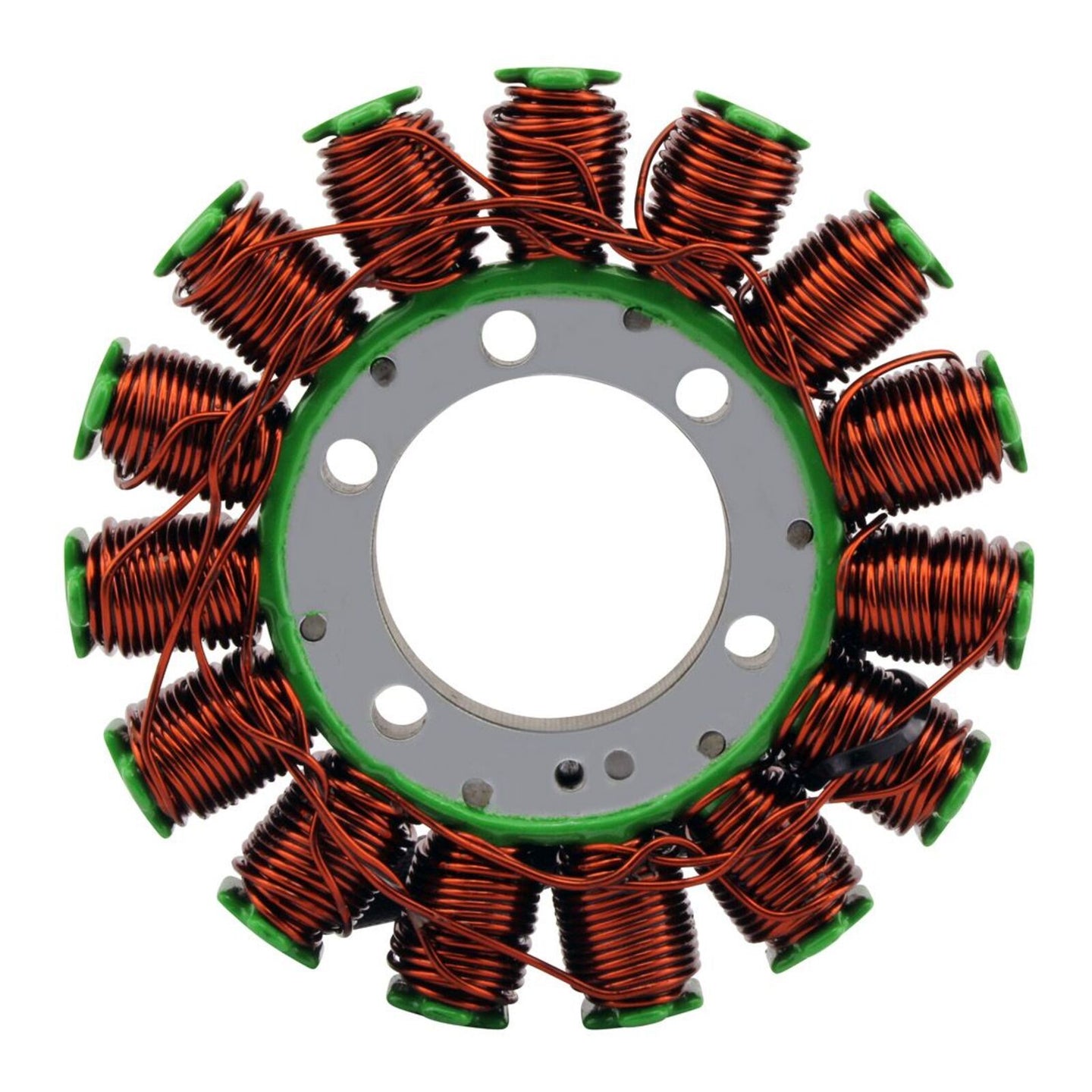

- Number of Poles: 15
- Alternator (Yellow to Yellow): 0.4 ohms ± 20%
- Pickup (Blue/Yellow to Green): 240 ohms ± 20%
