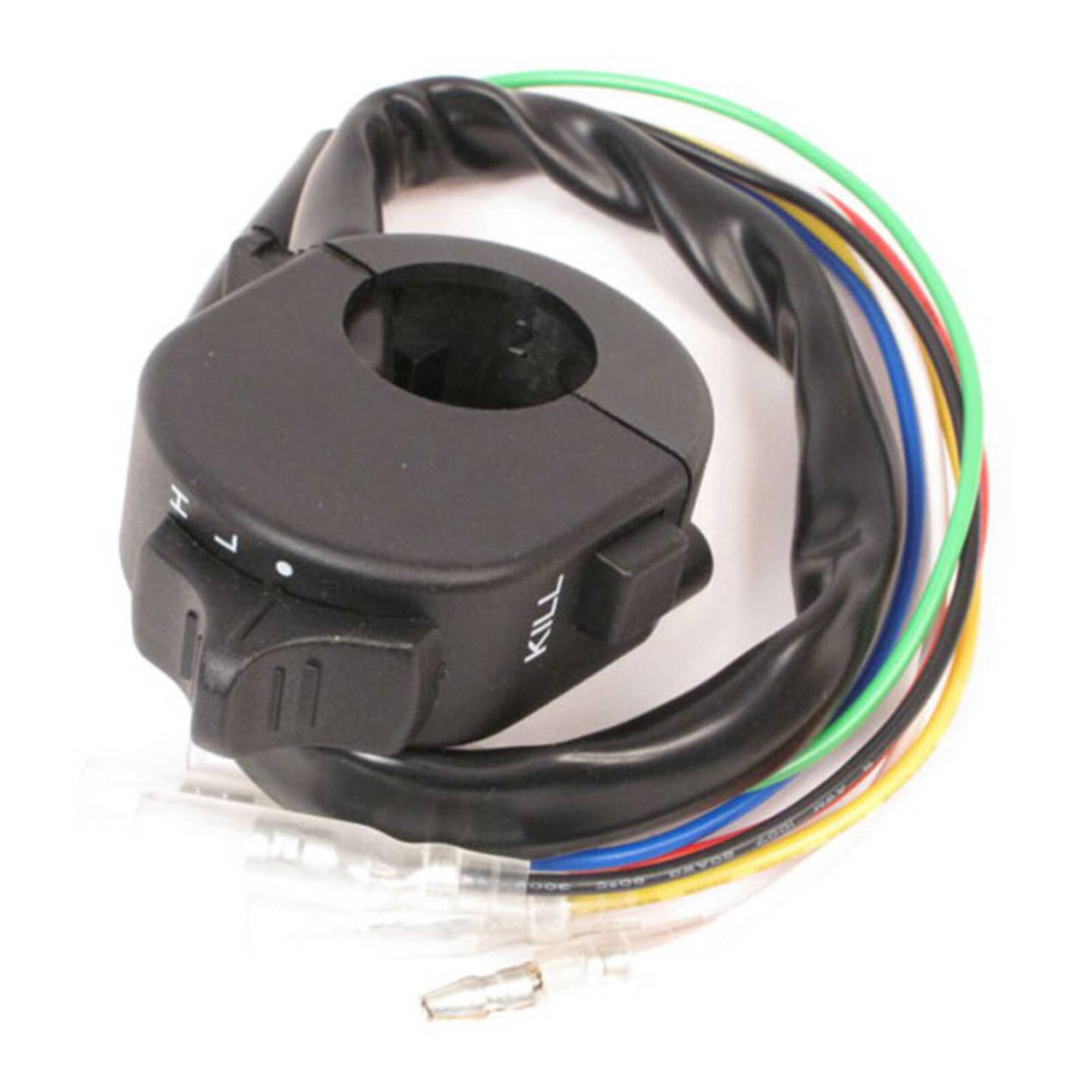

Boasting a sleek black and slim design, the Whites Headlight Switch Block is a multi-purpose handlebar switch with a High, Low and Off setting for your headlight and a kill switch. The switch block is pre-wired with an 18" length and bullet terminals for a quick and easy installation and is compatible with 7/8" handlebars. The block is only 20mm wide and 42mm high making it the perfect replacement for that bulky OEM block on your daily commuter or one of the custom machines.
Features:
- Pre-wired 18" wire with bullet terminals.
- Compatible with 7/8" handlebars.
- Full wrap around design.
- Three stage headlight switch high/low/off.
- Includes kill switch.
- Voltage Range - 11v - 15v
- Max Amps - 2.5 amps
- Material: ABS Plastic
- Width: 20mm
- Height: 42mm
Wiring Configuration:
- Red: Positive
- Black: Earth
- White: Kill Switch
- Green: Low Beam
- Yellow: High Beam
- Blue: Parking Light
